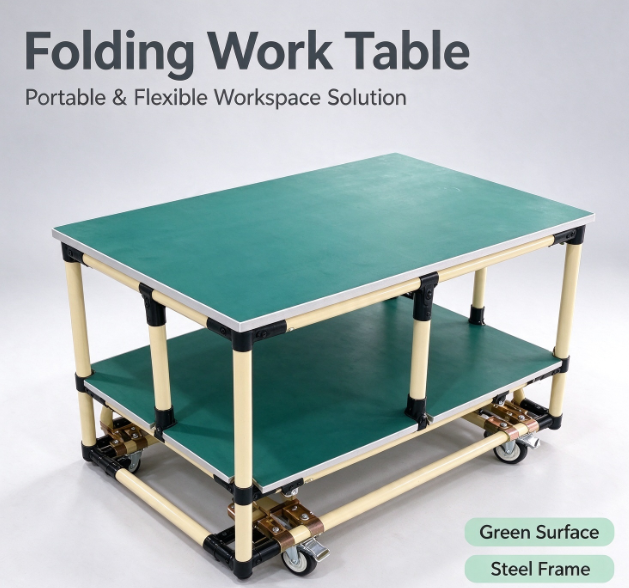

ESD Mobile Lean Tube Workbench, Anti-Static Modular Assembly Table with Casters

Our LTB-ESD-M08 ESD Mobile Lean Tube Workbench is a modular flexible workstation built on lean manufacturing principles, specially designed for electronics assembly, PCB inspection, warehouse packing, laboratory testing and cleanroom workshop environments.

Constructed with high-quality Φ28mm lean tube (steel pipe with PE outer coating) and heavy-duty black plastic quick connectors, the whole frame requires no welding. It supports fast assembly, disassembly, reconfiguration and line expansion. You can freely adjust the layout, add or remove shelves and extend multiple workbenches into a continuous assembly line according to your workshop layout changes.

The work surface is covered with 2mm thick green anti-static rubber mat, laminated on solid MDF base board. The ESD surface delivers stable static dissipation performance with surface resistance 10⁶ ~ 10⁹ Ohms, effectively releasing static electricity generated during operation and protecting sensitive electronic components such as chips, circuit boards and semiconductors from electrostatic damage. The anti-static tabletop features excellent wear resistance, impact resistance, acid & alkali resistance and easy-clean surface.

This model comes with double-layer ESD working board and 3-inch locking PU casters. The brake casters allow you to freely move the entire workbench to different production stations, then lock firmly in place during operation. Conductive casters and ESD grounding belt can be added as customized accessories to complete full ESD grounding protection system.

All connectors are standard universal joint fittings, compatible with global lean tube spare parts. Multiple benches can be connected side by side to form long continuous production lines, just like the photos show.

✅ Fully Modular & Reconfigurable: No welding, quick assembly, easy to modify structure anytime ✅ ESD Anti-Static Protection: Anti-static tabletop, optional ESD grounding belt & conductive casters ✅ Mobile Design with Brake Casters: Flexible station transfer, lock stable when working ✅ Multi-layer Storage: Double ESD shelves, extra layers / drawers can be customized ✅ Heavy Load: Up to 150kg loading capacity per layer ✅ Wide Customization: Custom length, width, height, color, accessories, lighting, tool hanging boards ✅ Easy Maintenance & Replaceable spare parts

1. Electronics assembly workshop: PCB soldering, component assembling, quality inspection
2. Warehouse & logistics: Order packing, sorting station
3. Laboratory & cleanroom: Precision testing, small batch R&D work
4. Production line: Flexible lean manufacturing line, combined connected workstations

• Model: LTB-ESD-M08
• Frame: Φ28mm lean tube + plastic joint connectors
• Tabletop: 2mm green ESD rubber sheet + MDF substrate
• Standard Size: 1200(L)*600(W)*800(H) mm, Custom size available
• Anti-static resistance: 10⁶ ~10⁹ Ω
• Caster: 3 inch PU brake caster (conductive caster optional)
• Max load: 250kg per shelf
• Custom accessories: ESD grounding belt, drawers, LED light frame, tool hanging plate, socket module, foot cups replace casters
