Aluminum Profile Anti-static Manual Roller Ball Transfer Assembly Line

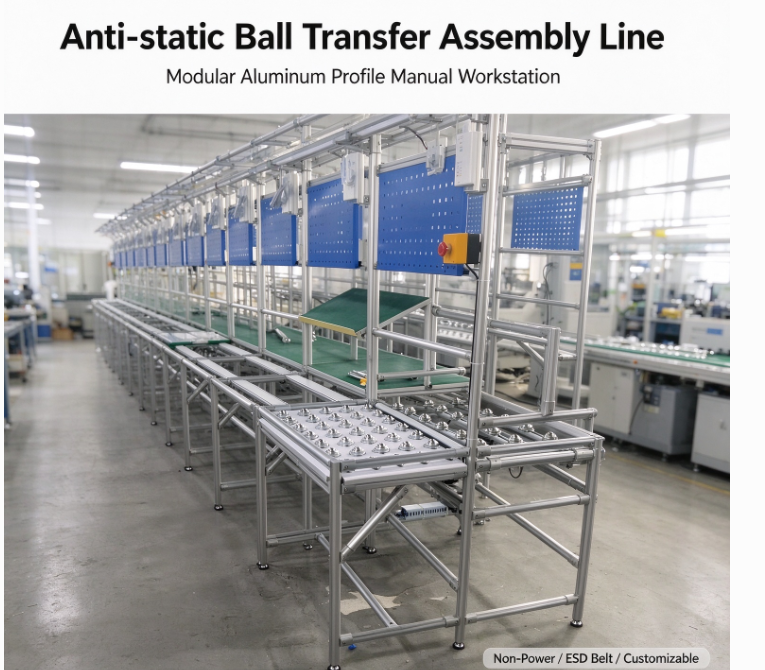

Product Description This manual ball transfer assembly line is constructed with heavy-duty industrial aluminum extrusion frame, combining anti-static green belt workstations and omnidirectional ball transfer tables (bull eye table). It is a non-power hand-push production line widely used for electronic assembly, battery PACK assembly, small home appliance assembly and workshop manual assembly operations.

The main frame adopts 4040 industrial aluminum profile, firmly connected by specialized aluminum fittings, easy to assemble and re-layout without welding. The workstation surface is high quality anti-static green PVC belt board, with excellent anti-static performance, effectively releasing static electricity to protect sensitive electronic components from ESD damage. The front transfer section is equipped with universal ball rollers (bull eye casters), allowing the workpiece fixture / pallet to freely rotate and shift in all directions, so workers can easily rotate the product without lifting heavy tooling, greatly reducing labor intensity and improving assembly efficiency.

Each workstation is equipped with blue hanging perforated tool hanging board for placing screwdrivers, jigs and small parts; emergency stop button is reserved on the side for safety control. Adjustable foot cups at the bottom support height adjustment and level calibration, adapting uneven factory ground.

✅ Fully Customizable Service:

1. Line total length, single station width & depth can be customized according to your workshop layout
2. Anti-static belt surface thickness, surface resistance value adjustable
3. Ball transfer table quantity, ball size can be modified based on workpiece weight
4. Add optional light strips, power socket modules, tool hooks, shelf layers, roller sections
5. Custom color of aluminum frame, ESD board and hanging panel

Key Application Scenarios Electronics assembly workshop, lithium battery PACK production, household appliance assembly, medical equipment assembly, manual testing station, manual packaging line.

Advantage

• No motor drive, low failure rate, energy saving, quiet operation
• Modular aluminum structure, flexible to move, extend or shorten the line later
• ESD anti-static belt, meets electronic manufacturing ESD protection standard
• Omni-directional ball transfer table for convenient product turning
• Simple maintenance, spare parts easy to replace
• Factory direct supply, free workshop layout drawing design

Technical Notes Workpiece load per station: max 150kg (can upgrade heavier load version on request) ESD surface resistance: 10^6 ~10^9 Ω standard anti-static range Assembly method: bolt connection, no welding
