CHT-CVP-460T Vacuum Bare Board Loader | SMT PCB Vacuum Loading Machine

Name: CHT-CVP-460T Vacuum Bare Board Loader | SMT PCB Vacuum Loading Machine
Brand: Shenzhen Jingji Technology Co., Ltd.
SKU: CHT-CVP-460T
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Shen Zhen China

Brand Name: Kutede

Certification: ISO

Model Number: CHT-CVP-460T

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: Export wooden case / carton box/Pallet for export

Delivery Time: 25-35 working day after received the deposit(The actual situation according to the quantity)

Payment Terms: T/T

Supply Ability: 200sets per month

Get Best Price

Product Details

Product Description

Highlight:

Application:	SMT Production Line PCB Loading	Control System:	PLC + Color HMI
Max PCB Capacity:	200pcs(0.6mm PCB)	Power Supply:	220V AC,120VA Max
Feature:	Independent Multi Vacuum System;Sound & Light Alarm	Feed Time:	Approx 8 Seconds Or Customized
Air Pressure:	4~6 Bar, Up To 30 L/min

Application:	SMT Production Line PCB Loading
Control System:	PLC + Color HMI
Max PCB Capacity:	200pcs(0.6mm PCB)
Power Supply:	220V AC,120VA Max
Feature:	Independent Multi Vacuum System;Sound & Light Alarm
Feed Time:	Approx 8 Seconds Or Customized
Air Pressure:	4~6 Bar, Up To 30 L/min

CHT-CVP-460T Vacuum Bare Board Loader | SMT PCB Vacuum Loading Machine

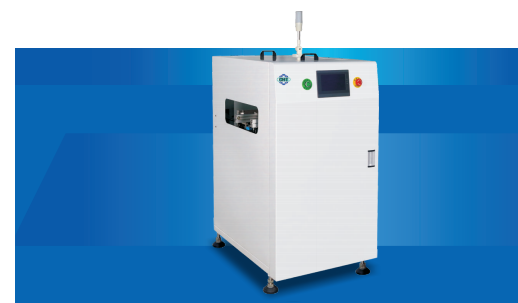

CHT-CVP-460T Vacuum Bare Board Loader

CHT-CVP-460T Vacuum Bare Board Loader is a top board feeding device for SMT production line circuit boards, automatically feeding PCB bare boards to the production line.

Features

Designed as top board feeding equipment for SMT production line PCB circuit boards
PLC control with colorful HMI human-machine interface for easy operation
Adopts multiple independent vacuum generating systems, stable and reliable PCB adsorption
Automatic lifting of loading platform to improve board feeding speed
PLC control system with multi-circuit protection, safe and stable operation
Sound & light alarm system, text prompt for abnormal information, simple maintenance
Standard SMEMA signal communication, compatible with SMT production line

Technical Parameters

Parameter	Value
Model	CHT-CVP-460T
Function	Automatically send bare circuit boards to SMT production line
PCB Feed Time	Approx.8 seconds, customizable
Max PCB Capacity	200pcs (0.6mm thick PCB)
Min PCB Thickness	0.6mm
Power Supply	220V AC, 120VA max
Air Pressure & Air Flow	4~6 bar, up to 30 L/min

Application

Widely used in SMT assembly lines for automatic bare PCB loading, matching with SMT printers, chip mounters and other SMT machines.

Custom Service

We support customized feeding speed and related parameters according to customer requirements.
