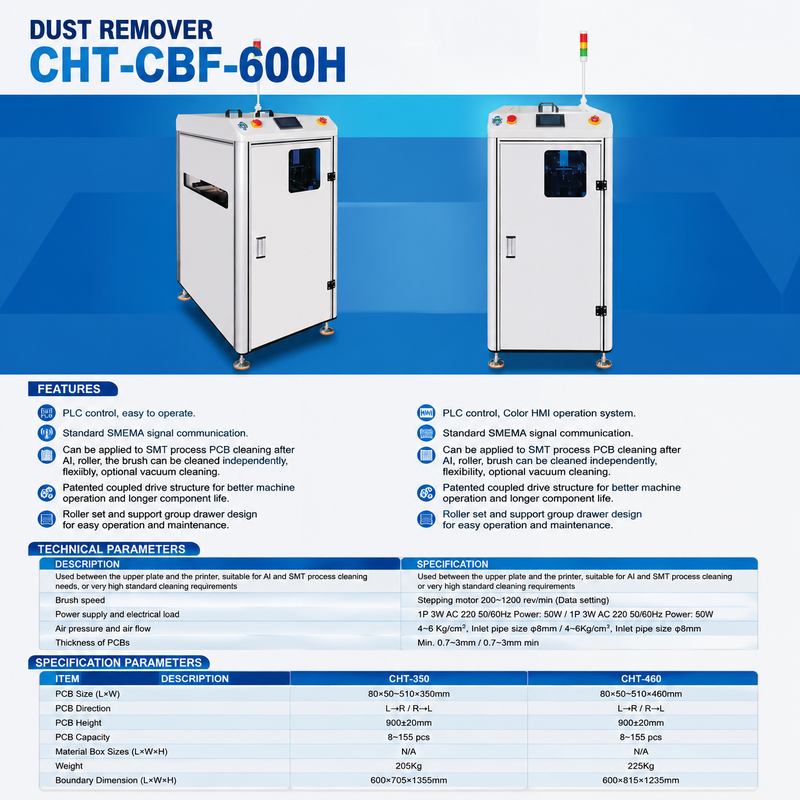

Automatic SMT PCB Dust Remover Cleaning Machine CHT-CBF-600H | SMEMA Compatible

Overview

Ensure the highest yield rates and zero-defect printing on your assembly line with the CHT-CBF-600H Automatic SMT PCB Dust Remover. Expertly designed to sit between the PCB loader and the SMT printer, this machine delivers high-standard surface cleaning for both AI and SMT processes. By effectively removing dust, microscopic debris, and static from the PCB surface, it prevents solder paste printing defects and enhances overall production quality.

Key Features

• Intelligent Control: Equipped with an advanced PLC control system and a user-friendly Color HMI touchscreen for effortless operation and monitoring.

• Seamless Integration: Features standard SMEMA signal communication, ensuring plug-and-play compatibility with your existing SMT production line.

• Flexible Cleaning Mechanism: Highly effective for post-AI process cleaning. The roller and brush can operate and be cleaned independently for maximum flexibility. (Optional vacuum cleaning module available).

• Durable & Stable: Utilizes a patented coupled drive structure that guarantees smoother machine operation and significantly extends the lifespan of internal components.

• Easy Maintenance: The innovative drawer-style design for the roller sets and support groups allows operators to perform fast, hassle-free daily maintenance.

Technical Parameters

• Application: Used between the upper plate (Loader) and Printer. Suitable for AI/SMT process cleaning.

• Brush Speed: Stepping motor, adjustable from 200 to 1200 rev/min (Data setting).

• Power Supply: 1P 3W AC 220V 50/60Hz.

• Power Consumption: 50W.

• Air Pressure & Flow: 4~6 Kg/cm².

• Inlet Pipe Size: φ8mm.

• PCB Thickness Compatibility: Min. 0.7mm to 3.0mm.

Model Specifications
