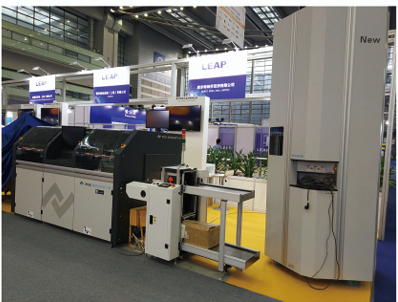

SMT Receiver AUD-12 Series | Automated Finished PCB Turnover Box Receiving Machine

The AUD-12 Series Receiver is a high-reliability automated unloader designed at the end of SMT production lines to manage finished products. It securely and systematically pushes completed PCBs into turnover boxes (magazine racks). Equipped with intelligent sensor control and anti-deformation safety mechanisms, it ensures zero damage to sensitive boards during the final accumulation stage.

• Standard SMEMA Interface Communication: Fully compatible with global SMT automation equipment brands for seamless plug-and-play production line integration.
• Panasonic PLC Control System: Powered by an industrial-grade Panasonic PLC to guarantee superior operational logic, long-term stability, and flawless execution.
• Intelligent 4.3-inch Touchscreen Operation: Features an intuitive digital HMI interface with multilingual display capability and real-time operational status updates.
• Anti-Deformation Double Clamping: Utilizes an integrated upper and lower double clamping mechanism to tightly lock the turnover box, effectively preventing any twisting or warping under weight.
• Smart SMC Pneumatic Push Drive: Uses a premium SMC air cylinder to slide PCBs into the box. Features synchronous alarm control that cross-references the pushing time and cylinder pressure to instantly halt operation if a box is missing or a board misaligns, preventing structural damage.
• Precision Roller Screw Elevator: The vertical elevator mechanism runs up and down on a high-grade roller screw system, guaranteeing heavy-duty loading stability and noise-free operation.

1. Universal Box Capability: Accommodates both large and small turnover box types within a single machine chassis configuration.
2. Buffer Receiving Track Extension: Adds a specialized buffer conveyor setup at the inlet to offer extra shock absorption and component-safe staging.
3. Multi-Box Lifter Connection: Supports connecting up to 3 to 5 turnover boxes simultaneously for extended continuous production runtimes without human intervention.
4. Auto-Width Adjustment System: Automatically controls and adjusts the track width of the docking station to match your production line changeovers.
5. Direct MES System Integration: Enables full synchronization of your final product sorting, packaging numbers, and factory-level MES database tracking.

*Note: Machine height/size excludes the top alarm light.
