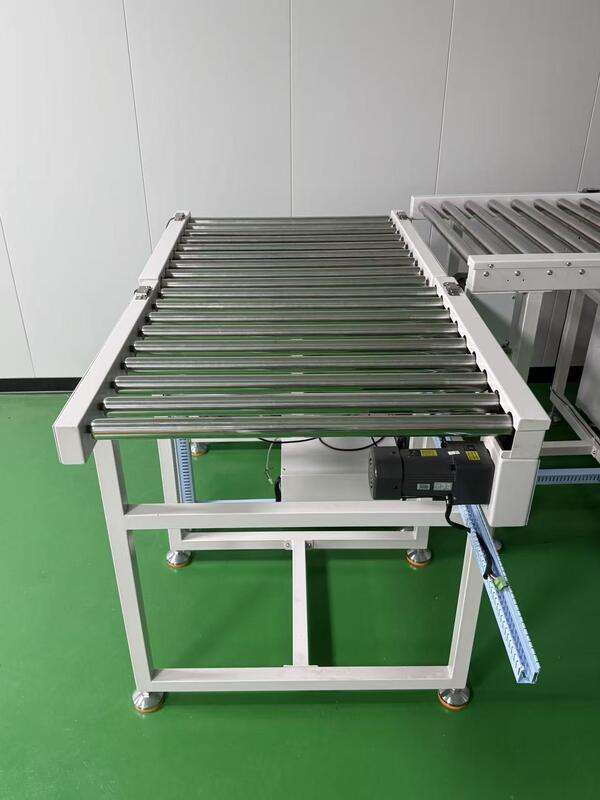

Standard SMT Roller Conveyor Rack High Flexibility and Smooth High Stability

SMT Roller Conveyor Rack Product Description

# Product Overview

Our Standard SMT Equipment Roller Conveyor Rack is engineered specifically for modern SMT (Surface Mount Technology) assembly lines and electronics manufacturing environments. Designed to seamlessly connect various SMT machines—such as pick-and-place systems, reflow ovens, and wave soldering equipment—this modular roller rack ensures an ultra-smooth, stable, and highly flexible PCB/magazine transfer process.

With its robust industrial construction and customizable layout, it is the perfect solution for maximizing production efficiency and maintaining high throughput in precision electronics factories.

# Key Features & Advantages

• High Flexibility & Modular Layout: The conveyor frame can be easily integrated into existing SMT production lines. Its modular design supports quick hardware adjustments and scaling based on your changing workshop workflow.

• Exceptional Transfer Stability: Equipped with premium, precision-engineered galvanized or stainless-steel rollers, the system guarantees friction-free, low-vibration transportation, safeguarding fragile electronic components and sensitive PCBs from shifting or damage.

• Heavy-Duty & Ergonomic Construction: Built using high-strength industrial aluminum profiles or coated carbon steel, the rack features adjustable leveling feet or optional lockable swivel casters to ensure absolute stability and ease of relocation.

• ESD Safe Design (Optional): Can be configured with anti-static rollers, ESD ground chains, and static-dissipative materials to protect microelectronic assemblies from electrostatic discharge.

• Low Maintenance & High Durability: The dust-resistant mechanical structure and smooth-rolling bearings require minimal upkeep, providing long-term reliability for 24/7 continuous factory operations.

# Technical Specifications (Customizable)

• Product Name: SMT Line Roller Conveyor / PCB Transfer Rack

• Roller Material: High-grade Galvanized Steel / Stainless Steel / Anti-static PVC

• Structure Frame: Heavy-duty Industrial Aluminum Profile / Square Steel Pipe

• Drive Type: Available in both Non-powered (Gravity/Manual flow) and Powered (Motorized roller with speed control) configurations.

• Applicable Industry: SMT, PCB Assembly, Semiconductor Manufacturing, Electronics Packaging.

• Dimensions: Fully customizable (Length, width, height, and layer count can be tailored to match your specific machinery).

# Wide Applications

This heavy-duty roller conveyor rack is an essential material handling component widely utilized in:

• SMT Production Lines: Buffering, linking, and transporting PCBs or magazines between processing units.

• Testing & Inspection Stations: Providing a stable manual or semi-automated workbench for quality control and AOI (Automated Optical Inspection) preparation.

• Logistics & Electronic Packaging: Smooth lightweight box sorting and transit lines within cleanrooms.
