SMT peripheral equipment - High-speed and stable SMT conveyor

Name: SMT peripheral equipment - High-speed and stable SMT conveyor
Brand: Shenzhen Jingji Technology Co., Ltd.
SKU: KTD-141
Availability: InStock

Product Details

Place of Origin: Shen Zhen China

Brand Name: Kutede

Certification: ISO

Model Number: KTD-141

Payment & Shipping Terms

Minimum Order Quantity: 1sets

Price: Negotiation

Packaging Details: Accessories packed separately

Delivery Time: 15-25 woring days after received the deposit(The actual lead time according to the quantity)

Payment Terms: T/T

Supply Ability: 1sets per mouths

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                high-speed SMT conveyor, stable SMT PCB conveyor, SMT peripheral equipment conveyor


Transportation Height:	Standard 920 ± 30mm (customizable)	Speed:	0 - 35 Meters Per Minute, Variable Speed Adjustment
Power Supply:	AC 220V 50/60Hz	Equipment Weight:	About 260kg
Dimensions Of The Shape:	Customizable

Transportation Height:	Standard 920 ± 30mm (customizable)
Speed:	0 - 35 Meters Per Minute, Variable Speed Adjustment
Power Supply:	AC 220V 50/60Hz
Equipment Weight:	About 260kg
Dimensions Of The Shape:	Customizable

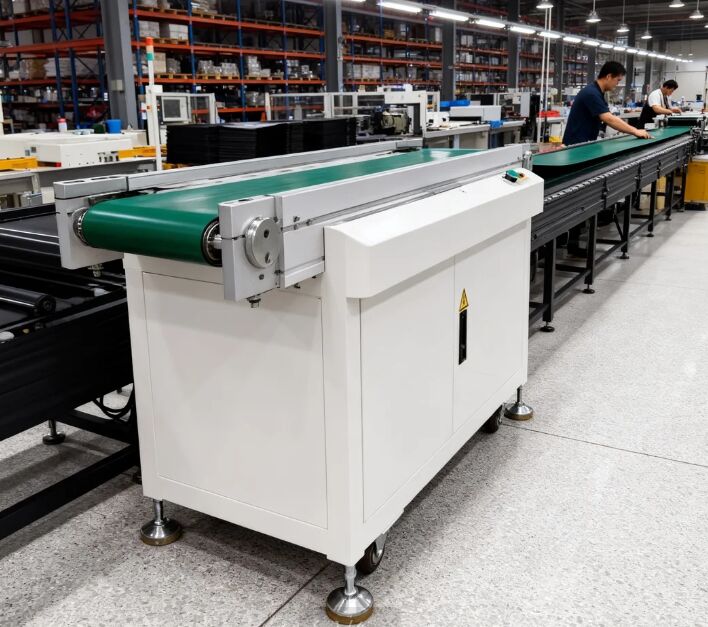

SMT peripheral equipment - High-speed and stable SMT conveyor

Product Description
The high-speed stable SMT conveyor is specially designed for large-scale electronic manufacturing lines. It is equipped with high-strength aluminum profiles and steel structure body, along with wear-resistant green anti-static conveyor belts. This design enables the PCB boards to be smoothly and rapidly transported between processes such as mounting, inspection, and reflow soldering. The entire machine has a sturdy structure and is suitable for 24-hour continuous high-load operation. It is an indispensable connection hub for modern SMT production lines.

Product features

Extremely wide adjustment range, supporting rapid manual/automatic adjustment of PCB width from 50mm to 530mm
High-strength green anti-static conveyor belt, wear-resistant and slip-resistant, with surface static discharge <10^9Ω
Multiple independent servo/step drives, smooth operation without jitter
Seamless front-back connection design, capable of perfect connection with surface mounters, AOI, reflow soldering machines, etc.
Attractive three-color warning lights + emergency stop switch, ensuring safe and reliable operation
Bottom casters + adjustable floor feet, suitable for both moving and fixing purposes

Product Advantages
Ultra-high efficiency: The maximum conveying speed can reach 35m/min, effectively shortening the production line cycle.
Super stability: Industrial-grade components, continuous operation MTBF ≥ 10,000 hours.
High adaptability: Robust body with shock resistance and anti-interference capabilities, suitable for various factory environments.
Low maintenance cost: Modular design, easy cleaning and replacement, reducing downtime.
High cost-effectiveness: A perfect balance between high performance and reasonable price.

Application scenario

Mass production lines for consumer electronics (smartphones, tablets, smart wearables)
SMT production lines for home appliance control boards and power boards
Large-scale assembly of LED lighting and automotive electronic modules
Long-distance conveying sections in standard THT/SMT mixed production lines

SMT peripheral equipment - High-speed and stable SMT conveyor 0
