Automated High-Speed SMT PCB Conveyor for Assembling Electric Circuit Boards

Product Details

Place of Origin: Shenzhen ,China

Brand Name: jingji

Certification: ISO

Model Number: CHT-CWUD-303SX

Payment & Shipping Terms

Minimum Order Quantity: 5sets

Price: Negotiation

Packaging Details: Standard export packaging with accessories packed separately for protection

Delivery Time: 15-20 working day after received the deposit(The actual situation according to the quantity)

Payment Terms: T/T

Supply Ability: 1000 Sets Per Day

Get Best Price
Highlight:

high-speed SMT PCB conveyor

,

automated PCB assembly conveyor

,

electric circuit board conveyor

Server:
Openresty
Description:
The Server Understood The Request, But Is Refusing To Fulfill It.
Server:
Openresty
Description:
The Server Understood The Request, But Is Refusing To Fulfill It.

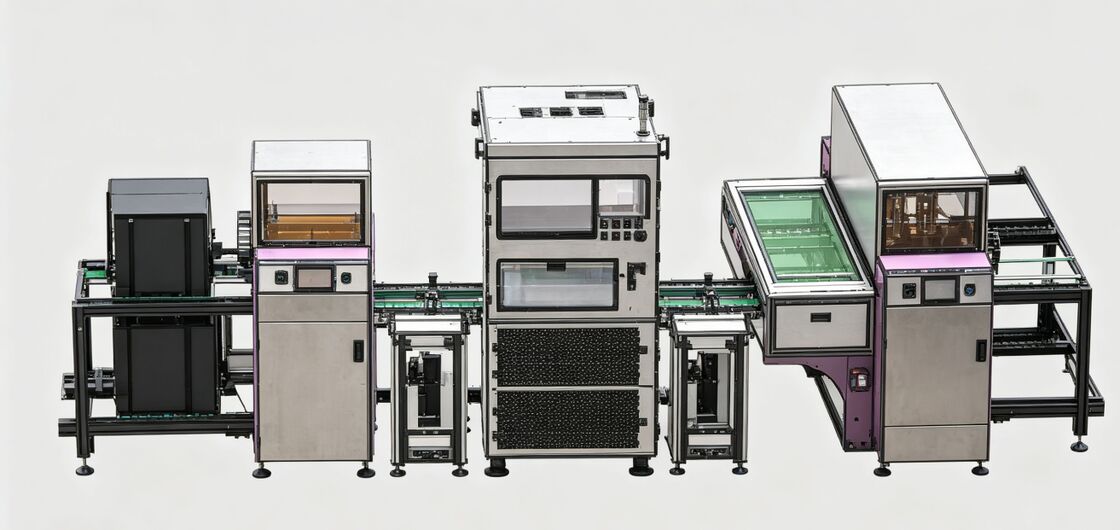

Automated High-Speed SMT PCB Conveyor for Assembling Electric Circuit Boards
Full Product Details
1. Product Overview
The CHT-CWUD-303SX SMT PCB Conveyor is a high-efficiency, modular automatic material handling system engineered for seamless PCB transportation in Surface Mount Technology (SMT) production lines. It connects upstream and downstream equipment (including printers, pick-and-place machines, inspection stations, and reflow ovens) to ensure continuous, stable, and ESD-safe PCB flow throughout the manufacturing process.
2. Core Specifications & Product Advantages


表格

Item Details
Model CHT-CWUD-303SX
Certification ISO Certified
MOQ 5 Sets
Price Negotiation
Payment T/T
Supply Capacity 1000 Sets Per Day
Lead Time Lead Time 15-25 working days after receiving the deposit (Actual lead time subject to order quantity)
Packaging Standard export packaging with accessories packed separately for protection

3. Key Selling Points
✅ ISO Certified Quality & ESD Safety
Manufactured under ISO standards, the CHT-CWUD-303SX features a full ESD-compliant design, including anti-static conveyor belts, grounded frames, and safety guards, to protect sensitive PCBs and electronic components from static damage.
✅ High Compatibility & Modular Design
The modular configuration allows flexible integration with all mainstream SMT equipment, supporting multiple PCB sizes and production speeds to fit different line layouts and manufacturing needs.
✅ High Production Efficiency
Built for 24/7 continuous operation with a daily supply capacity of up to 1000 sets, the system ensures stable, high-volume production support for large-scale electronics manufacturing.
✅ Reliable & Low Maintenance
Constructed with industrial-grade aluminum alloy and stainless steel components, the line offers long-term durability, minimal downtime, and easy maintenance for long-term use.
✅ Flexible Order & Delivery Support
With a low MOQ of 5 sets, negotiable pricing, and reliable lead times, we offer flexible solutions to meet both small and large-scale production orders.
4. Applications
SMT production line PCB loading/unloading
PCB transfer and buffering between assembly stages
In-line inspection (AOI/SPI) station material handling
Bare PCB and assembled circuit board transportation in electronics manufacturing
