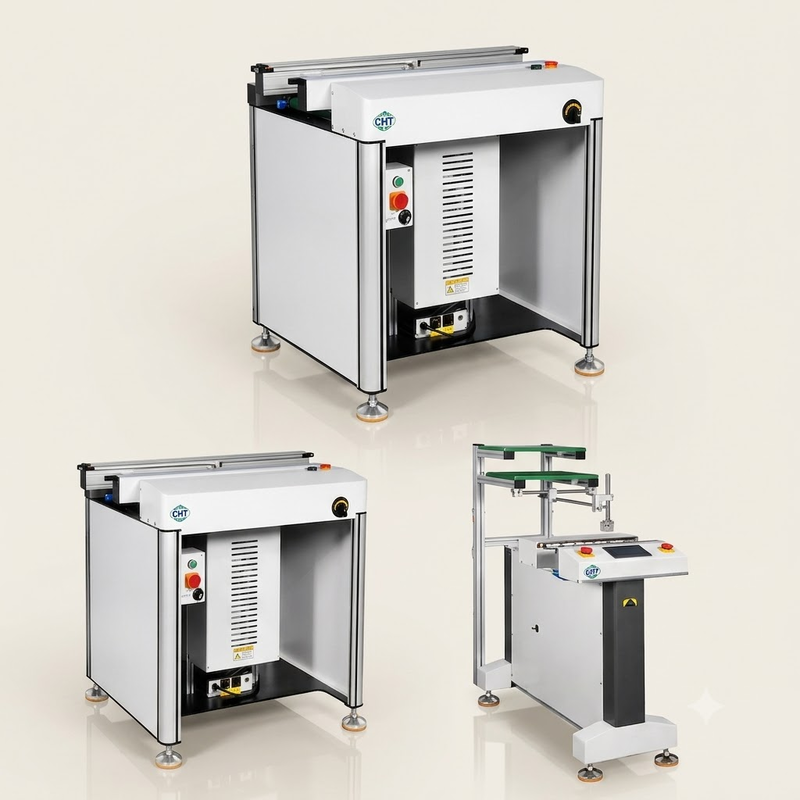

SMT PCB Inspection Conveyor CHT-CBC-350T | SMEMA Compatible Handling Equipment

Achieve smart connection, precise inspection, and efficient production with the CHT-CBC-350T PCB Inspection Conveyor. Designed to bridge SMT equipment smoothly, this station provides an optimized ergonomic workspace for operators to conduct visual inspections or manual assembly. Built with a sturdy frame and advanced PLC control, it is the perfect solution to enhance your electronics manufacturing workflow.

Key Features

• Ergonomic Inspection Station: Equipped with an active work table, document signage, and high-brightness lighting fixtures, providing a user-friendly working height that improves operational efficiency and convenience.

• Anti-Static & Durable: Features a high-quality imported green flat anti-static transmission belt that is highly durable and easy to replace.

• Stable Structure: Constructed with a robust sheet metal frame, ensuring overall stability and preventing unwanted shifting during high-speed production.

• Smart Control System: Integrated with a PLC control system and standard SMEMA communication mode for seamless integration with upstream and downstream machines.

• Easy Adjustments: Track entrances and exits utilize independent installation guide extension blocks, making adjustments and replacements fast and simple.

Optional Customization

Tailor the conveyor to your exact production needs with our modular upgrades:

• Two-segment or multi-segment transmission (min. 0.5m in length) with independent width adjustments.

• Cooling fans, block cylinders, inspection platforms, and dust covers.

• Advanced program compatibility with Scanners, AOI machines, and NG/OK communication signals.

• Customized transmission speeds ranging from 50~250mm, 50~350mm, 50~460mm, to 50~510mm.

Technical Parameters

• Conveyor Speed: 0.5–20m/min (or specified by customer).

• Power Supply: Single-phase 220V AC, Up to 300VA.

• Board Thickness: Min. 0.6mm.

• Application: Connection or operator inspection between SMT equipment.

Model Specifications
